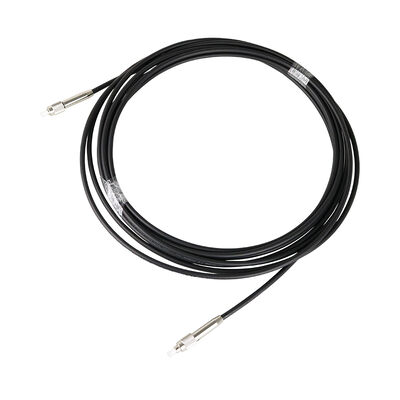

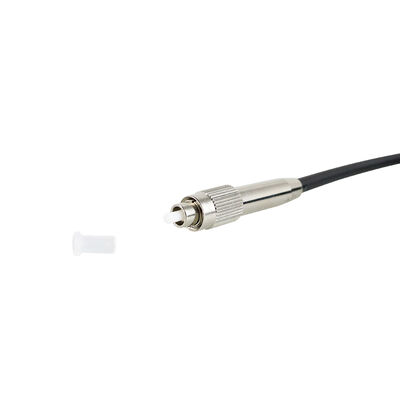

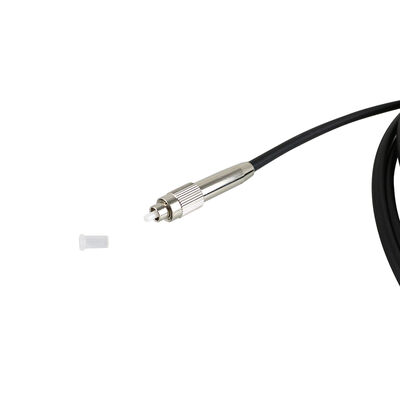

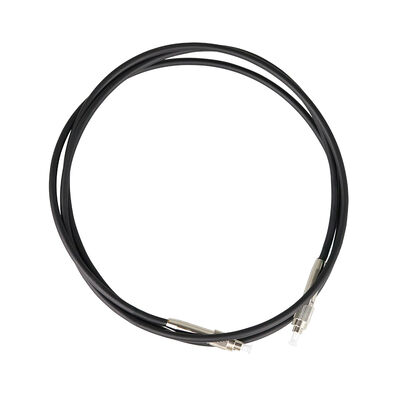

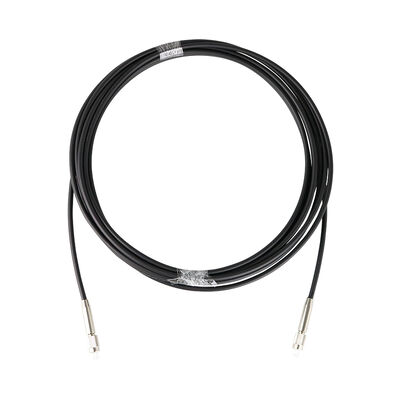

Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Свяжитесь я бесплатно образцы и талоны.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.
xПодробная информация о продукте
| Длина волны (нм) | от 400 до 2500 нм (низкий OH) | Цифровая диафрагма (NA) | 0.22±0.02 |
|---|---|---|---|
| Минимальная затухание (длина волны RSS) | 20 дБ | Ядро / облицовка | Чистый кремний / кремний, допированный фторином |
| Оба конца | FC UPC | Доступно в длинах | 20 м |
Характер продукции
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode fiber optic patch cord: are designed for shorter distance transmission. They have a larger core diameter (typically 50 or 62.5 microns) compared to single mode patch cord. Multimode fiber jumper are often utilized in LAN (Local Area Network) environments, campus networks, and short-distance communications within buildings.
Feature:
- Numerical Apertures from 0.10 to 0.50 - Compatible with majority of fiber-coupled, diode-laser packages
- Cables Available for Wavelengths from 190 nm to 2500 nm
- Available in Lengths up to 20m*
- SMA905 Connectors on Both Ends
- Ø0.9 mm, Ø2.0 mm, Ø3.0 mm,Ø4.8 mm,, Ø5.0 mm, or 6.0mm Outer Jacket available (12-color options)
- Custom Cables Available
*We have some Ø3.0mm & Ø2.0mm specialty cables in store, so no need to insert bare fiber into the tubing, thus any length will be available. Please contact us for details.
Application:
- Spectroscopy
- Illumination
- Power/Beam Delivery
- LED Energy Transmission
- Medical Instruments
- Optogenetics
- Fiber coupled diode lasers
- Couplers and pump combiners
- Coherent Multi-Mode Fibers: (Only list part of this series)
| Model No. | Core Diameter | NA | Cladding Diameter | Coating Diameter | Wavelength Range | OH Level |
| MM-S105/125-12A | 105.0 ± 3.0 μm | 0.120 ± 0.020 | 125.0 ± 2.0 μm | 245.0 ± 15.0 μm | 800 – 1600 nm | Low |
| MM-S105/125-15A | 105.0 ± 3.0 μm | 0.150 ± 0.020 | 125.0 ± 2.0 μm | 245.0 ± 15.0 μm | 800 – 1600 nm | Low |
| MM-S105/125-22A | 105.0 ± 3.0 μm | 0.220 ± 0.020 | 125.0 ± 2.0 μm | 245.0 ± 15.0 μm | 800 – 1600 nm | Low |
| MM-S200/220-12A | 200.0 ± 4.0 μm | 0.120 ± 0.020 | 220.0 ± 3.0 μm | 320.0 ± 15.0 μm | 800 – 1600 nm | Low |
| MM-S200/220-22A | 200.0 ± 4.0 μm | 0.220 ± 0.020 | 220.0 ± 3.0 μm | 320.0 ± 15.0 μm | 800 – 1600 nm | Low |
| MM-S200/240-22A | 200.0 ± 4.0 μm | 0.220 ± 0.020 | 220.0 ± 3.0 μm | 320.0 ± 15.0 μm | 800 – 1600 nm | Low |
| MM-S400/440-22A | 400.0 ± 9.0 μm | 0.220 ± 0.020 | 440.0 ± 8.0 μm | 625.0 ± 25.0 μm | 800 – 1600 nm | Low |
MM-S600/660-22FA | 600.0 ± 12.0 μm | 0.220 ± 0.020 | 660.0 ± 12.0 μm | 875.0 ± 30.0 μm | 700 – 2200 nm | Low |
- Coherent NuBEAM series Beam Delivery Fibers: (Only list part of this series)
| Model No. | Core Diameter | NA | Second Cladding Diameter | Second Buffer Diameter | Wavelength Range | OH Level |
| BD-S50/70/360-STN | 51.0 ± 1.0 μm | 0.220 ± 0.020 | 367.5 ± 7.5 μm | 650 ± 32 μm | 800 – 2100 nm | Low |
| BD-S100/130/480-STN | 102.00 ± 2.00 μm | 0.220 ± 0.020 | 490 ± 10 μm | 750 ± 37 μm | 800 – 2100 nm | Low |
| BD-S150/180/660-STN | 153.00 ± 3.00 μm | 0.220 ± 0.020 | 673 ± 13 μm | 1100 ± 55 μm | 700 – 2200 nm | Low |
| BD-S200/220/360-STN | 204.0 ± 4.0 μm | 0.220 ± 0.020 | 367.5 ± 7.5 μm | 650 ± 32 μm | 800 – 2100 nm | Low |
| BD-S300/330/360-STN | 306.0 ± 6.0 μm | 0.220 ± 0.020 | 367.5 ± 7.5 μm | 650 ± 33 μm | 800 – 2100 nm | Low |
| BD-S400/440/660-STN | 408.0 ± 8.0 μm | 0.220 ± 0.020 | 672.5 ± 12.5 μm | 1100 ± 55 μm | 800 – 2100 nm | Low |
| BD-S600/660/720-STN | 612.00 ± 12.00 μm | 0.220 ± 0.020 | 735 ± 15 μm | 1100 ± 55 μm | 700 – 2200 nm | Low |
| BD-S1000/1100-STN | 1020.0 ± 20.0 μm | 0.220 ± 0.020 | N/A | 1400 ± 70 μm | 800 – 2100 nm | Low |
Ordering Information:
- Connector End A-Connector End B, Connector Type
- Fiber Type: Wavelength Range, Core/Cladding Diameter, Core NA, Coating Diameter, Coating Material, Attenuation Plot, etc.
- Furcation Tubing Type
- Cable Length
